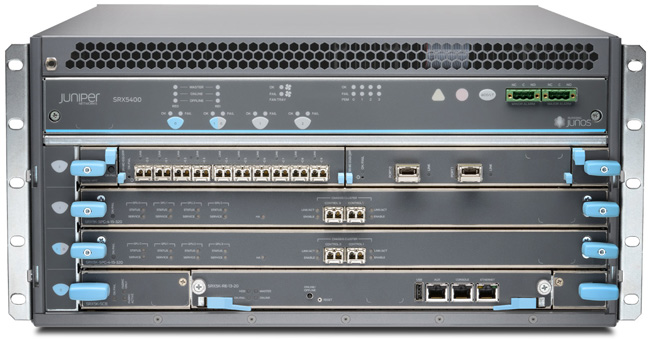

Juniper Networks SRX5400 Services Gateway
Uses Dynamic Services Architecture provided by Junos to scale integrated security and network capabilities
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-LH if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-LX if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-SX if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-T if necessary.
Our Price: Request a Quote
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
SRX5400 Overview:
The SRX5400 Services Gateway is a next-generation security platform ideally suited for service provider, large enterprise and public sector networks. It is based on a revolutionary new architecture and utilizes new line cards to provide market-leading connectivity, performance and service integration.
Its superior price/performance value and small footprint makes the SRX5400 Services Gateway ideal for securing enterprise edges and data centers, service provider infrastructures, and next-generation services and applications.
The SRX5400 supports up to 65 Gbps firewall and 22 Gbps IPS, as well as 450,000 new connections per second and 28 million concurrent user sessions. It offers 10GbE, 40GbE, and 100GbE connectivity options.
The SRX5400 Services Gateway uses the IOCII and SPCII and can support up to 65 Gbps firewall and 22 Gbps IPS. The SRX5400 is a small footprint, high-performance gateway ideally suited for securing large enterprise campuses as well as data centers, either for edge or core security deployments. The capability to support unique security policies per zone and a compelling price/performance/footprint ratio make the SRX5400 an optimal solution for edge or data center services in large enterprise, service provider, or mobile operator environments.
Juniper Networks SRX Series Services Gateways are next-generation security platforms based on a revolutionary architecture offering outstanding protection, performance, scalability, availability, and security service integration. Custom designed for flexible processing scalability, I/O scalability, and services integration, the SRX Series exceeds the security requirements of data center consolidation and services aggregation. The SRX Series is powered by Junos OS, the same industry-leading operating system platform that keeps the world's largest networks available, manageable, and secure for the data center.
The Juniper Networks SRX5400, SRX5600, and SRX5800 Services Gateways are next-generation security platforms based on a revolutionary architecture that provides marketleading performance, scalability, and service integration. These devices are ideally suited for service provider, large enterprise, and public sector networks, including:
- Cloud and hosting provider data centers
- Mobile operator environments
- Managed service providers
- Core service provider infrastructures
- Large enterprise data centers
Based on Juniper's dynamic services architecture, the SRX5000 line provides unrivaled scalability and performance. Each services gateway can support near linear scalability, with the addition of Services Processing Cards (SPCs) enabling a fully equipped SRX5800 to support up to 300 Gbps firewall throughput. The SPCs are designed to support a wide range of services, enabling future support of new capabilities without the need for servicespecific hardware. Using SPCs on all services ensures that there are no idle resources based on specific services being used-maximizing hardware utilization.
The scalability and flexibility of the SRX5000 line is supported by equally robust interfaces. The SRX5000 line employs a modular approach to interfaces, where each platform can be equipped with a flexible number of input/output cards (IOCs) that offer a wide range of connectivity options-from 1GbE to 100GbE interfaces. With the IOCs sharing the same interface slot as the SPCs, the gateway can be configured as needed to support the ideal balance of processing and I/O. Hence, each deployment of the SRX Series can be tailored to specific network requirements. With this flexibility, the SRX5800 can be configured to support more than 400GbE ports, or 220 10GbE, 22 100GbE, or 44 40GbE ports.
The scalability of both SPCs and IOCs in the SRX5000 line is enabled by the custom designed switch fabric. Supporting up to 960 Gbps of data transfer, the fabric enables realization of maximum processing and I/O capability available in any particular configuration. This level of scalability and flexibility facilitates future expansion and growth of the network infrastructure, providing unrivaled investment protection.
The tight service integration on the SRX Series is enabled by Juniper Networks Junos operating system. By combining the routing heritage of Junos OS and the security heritage of ScreenOS, the SRX Series is equipped with a robust list of services that include firewall, intrusion prevention system (IPS), denial of service (DoS), application security, Network Address Translation (NAT), and quality of service (QoS). In addition to the benefit of individual services, incorporating multiple security and networking services within one OS greatly optimizes the flow of traffic through the platform. Network traffic no longer needs to be routed across multiple data paths/cards or even disparate operating systems within a single gateway.
Junos OS also delivers carrier-class reliability to the already redundant SRX Series. The SRX Series enjoys the benefit of a single source OS, and single integrated architecture traditionally available on Juniper's carrier-class routers and switches.
Architecture and Key Components:
Service Processing Cards
As the "brains" behind the SRX5000 line, SPCs are designed to process all available services on the platform. Without the need for dedicated hardware for specific services or capabilities, there are no instances in which a piece of hardware is taxed to the limit while other hardware is sitting idle. SPCs are designed to be pooled together, allowing the SRX5000 line to expand performance and capacities with the introduction of additional SPCs, drastically reducing management overhead and complexity. The same SPCs are supported on both SRX5600 and SRX5800 Services Gateways.
Juniper offers the SPCII, a newer SPC with superior performance and scale. The SPCII also features in-service software and inservice hardware upgrades to ensure that security is always on. The SPCII is supported on the SRX5400, SRX5600, and SRX5800 Services Gateways.
Input Output Cards
To provide the most flexible solution, the SRX5000 line employs the same modular architecture for SPCs and IOCs. The SRX5000 line can be equipped with one or several IOCs, supporting the ideal mix of interfaces. With the flexibility to install an IOC or an SPC on any available slot, the SRX5000 line can be equipped to support the perfect blend of interfaces and processing capabilities to meet the needs of the most demanding environments.
Juniper offers the IOCII, a newer card with superior connectivity options. The IOCII offers the industry's first 100GbE as well as 40GbE and high-density 10GbE connectivity options. These options reduce the need for link aggregation when connecting high throughput switches to the firewall, as well as enabling increased throughput in the firewall itself. The IOCII is supported on all three platforms in the SRX5000 line of services gateways.
Features & Benefits:
Networking and Security
Juniper Networks SRX5000 line has been designed from the ground up to offer robust networking and security services.
| Features | Features Description | Benefits |
|---|---|---|
| Purpose-built platform | Built from the ground up on dedicated hardware designed for networking and security services. | Delivers unrivaled performance and flexibility to protect high-speed network environments. |
| Scalable performance | Offers scalable processing based on the Dynamic Services Architecture. | Simple and cost-effective solution to leverage new services with appropriate processing. |
| System and network resiliency | Provides carrier-class hardware design and proven OS. | Offers the reliability needed for any critical high-speed network deployments without service interruption. |
| High availability (HA) | Active/passive and active/active HA configurations using dedicated high availability interfaces. | Achieve availability and resiliency necessary for critical networks. |
| Interface flexibility | Offers flexible I/O options with modular cards based on the Dynamic Services Architecture. | Offers flexible I/O configuration and independent I/O scalability to meet the port density requirements of demanding network environments. |
| Network segmentation | Security zones, virtual LANs (VLANs), and virtual routers that allow administrators to deploy security policies to isolate subnetworks and use overlapping IP address ranges. | Features the capability to tailor unique security and networking policies for various internal, external, and demilitarized zone (DMZ) subgroups. |
| Robust routing engine | Dedicated routing engine that provides physical and logical separation to data and control planes. | Enables deployment of consolidated routing and security devices, as well as ensuring the security of routing infrastructure-all via a dedicated management environment. |
| AppSecure | Tightly integrated services on Junos OS including multi-gigabit firewall, IPsec VPN, IPS, DoS, application security, and other networking and security services. | Unmatched integration ensuring network security against all level of attacks. |
| Stateful GPRS inspection | Support for GPRS firewall in mobile operator networks. | Enables the SRX5000 line to provide stateful firewall capabilities for protecting key GPRS nodes within mobile operator networks. |
| User identity-based access control enforcement | Secure access to data center resources via tight integration of standards-based access control capabilities of Juniper Networks Junos Pulse Access Control Service and SRX5000 line. | Enables agent-based and agentless identity security services for enterprise data centers by integrating the SRX5000 line with the standards-based access control capabilities of Junos Pulse Access Control Service. This integration enables administrative flexibility to manage a variety of user access, including corporate, guest, and mobile. |
| Unified threat management (UTM) | Strong UTM capabilities, including IPS, antivirus, antispam, Web, and content filtering. Available on-box with preinstalled, expanding and adaptive capabilities that are quickly activated for zero-day, easy, and instant protection. Antivirus options are available from Sophos and Kaspersky, Web filtering from Websense, and antispam from Sophos. | Best-in-class UTM protection with strong, highperformance content security leveraging intelligence from multiple expert security companies. |
| I/O card II | The first firewall I/O card in the industry to offer 100GbE connectivity. The card includes a choice of ten 10GbE, two 40GbE, or one 100GbE I/O interfaces. Pairs well with SPCIIs for maximized firewall performance in any of the SRX5000 line of gateways. | Increases connectivity efficiency with high throughput I/O interfaces. Reduces the need for link aggregation to the firewall and enables higher firewall throughput. |
| SPC card II | Enables performance and scale with full, backwards compatibility to SRX5000 chassis and cards. Like current SPCs, these cards support in-service software and in-service hardware upgrades | Delivers always-on security resiliency to meet your growing network performance needs. |
| AutoVPN | One time hub configuration for site-to-site VPN for all spokes, even newly added ones. Configuration options include: routing, interfaces, IKE, and IPsec. | Enables IT administrative time and cost savings with easy, no-touch deployment for IPsec VPN networks. |
Traffic Inspection Methods
Juniper Networks SRX Series Services Gateways support various detection methods to accurately identify the application and traffic flow through the network.
| Features | Features Description | Benefits |
|---|---|---|
| Application identification | Identifies applications and tunneled applications independent of protocol and port numbers. | Granular control over application traffic through smart FW policies. |
| Protocol anomaly detection | Protocol usage against published RFCs is verified to detect any violations or abuse. | Proactively protect network from undiscovered vulnerabilities. |
| Traffic anomaly detection | Heuristic rules detect unexpected traffic patterns that may suggest reconnaissance or attacks. | Proactively prevent reconnaissance activities or block distributed denial of service (DDoS) attacks. |
| IP spoofing detection | The validity of allowed addresses inside and outside the network are checked. | Permit only authentic traffic while blocking disguised source. |
| DoS detection | Protection against SYN flood, IP, ICMP, and application attacks. | Protect your key network assets from being overwhelmed by denial of service attacks. |
Unified Threat Management Capabilities
Juniper Networks unified threat management (UTM) assures the highest level of network security with best-in-class protection and high performance content security leveraging intelligence from multiple expert security companies. Juniper UTM includes AppSecure, IPS, antivirus, antispam, Web filtering, and content filtering.
AppSecure
Juniper Networks AppSecure is a suite of next-generation security capabilities that utilize advanced application identification and classification to deliver greater visibility, enforcement, control and protection over the network.
| Features | Features Description | Benefits |
|---|---|---|
| AppTrack | Detailed analysis on application volume/usage throughout the network based on bytes, packets and sessions. | Provides the ability to track application usage to help identify high-risk applications and analyze traffic patterns for improved network management and control. |
| AppFirewall | Fine grained application control policies to allow or deny traffic based on dynamic application name or group names. | Enhances security policy creation and enforcement based on applications and user roles rather than traditional port and protocol analysis. |
| AppQoS | Set prioritization of traffic based on application information and contexts. | Provides the ability to prioritize traffic as well as limit and shape bandwidth based on application information and contexts for improved application and overall network performance. |
| AppDoS | Multi-stage detection methods used to identify and mitigate distributed denial of service attacks targeting applications. | Prevent service disruptions due to targeted attacks at applications by filtering and blocking malicious traffic while allowing legitimate traffic. |
| Application signatures | More than 700 signatures for identifying applications and nested applications. | Applications are accurately identified and the resulting information can be used for visibility, enforcement, control and protection. |
| SSL inspection | Inspection of HTTP traffic encrypted in SSL on any TCP/UDP port. | Combined with application identification, provides visibility and protection against threats embedded in SSL encrypted traffic. |
IPS Capabilities
Juniper Networks IPS capabilities offer several unique features that assure the highest level of network security.
| Features | Features Description | Benefits |
|---|---|---|
| Stateful signature inspection | Signatures are applied only to relevant portions of the network traffic determined by the appropriate protocol context. | Minimize false positives and offer flexible signature development. |
| Protocol decodes | More than 65 protocol decodes are supported along with more than 500 contexts to enforce proper usage of protocols. | Accuracy of signatures is improved through precise contexts of protocols. |
| Signatures | There are more than8,500 signatures for identifying anomalies, attacks, spyware, and applications. | Attacks are accurately identified and attempts at exploiting a known vulnerability are detected. |
| Traffic normalization | Reassembly, normalization, and protocol decoding are provided. | Overcome attempts to bypass other IPS detections by using obfuscation methods. |
| Zero-day protection | Protocol anomaly detection and same-day coverage for newly found vulnerabilities are provided. | Your network is already protected against any new exploits. |
| Recommended policy | Group of attack signatures are identified by Juniper Networks Security Team as critical for the typical enterprise to protect against. | Installation and maintenance are simplified while ensuring the highest network security. |
| Active/active traffic monitoring | IPS monitoring on active/active SRX5000 line chassis clusters. | Support for active/active IPS monitoring including advanced features such as low impact chassis upgrades. |
| Packet capture | IPS policy supports packet capture logging per rule. | Conduct further analysis of surrounding traffic and determine further steps to protect target. |
Content Security UTM Capabilities
The UTM services offered on the SRX5000 line of gateways include industry-leading antivirus, antispam, content filtering, and additional content security services.
| Features | Features Description | Benefits |
|---|---|---|
| Antivirus | Antivirus includes reputation-enhanced, cloud-based antivirus capabilities that detect and block spyware, adware, viruses, keyloggers, and other malware over POP3 HTTP, SMTP, IMAP, and FTP protocols. This service is provided in cooperation with Sophos Labs, a dedicated security company. | Sophisticated protection from respected antivirus experts against malware attacks that can lead to data breaches and lost productivity. |
| Antispam | Multilayered spam protection, up-to-date phishing URL detection, standards-based S/MIME, Open PGP and TLS encryption, MIME type and extension blockers are provided in cooperation with Sophos Labs, a dedicated security company. | Protection against advanced persistent threats perpetrated through social networking attacks and the latest phishing scams with sophisticated e-mail filtering and content blockers. |
| Integrated Web filtering | Enhanced Web filtering includes extensive category granulation (90+ categories) and a real-time threat score delivered with Websense, an expert Web security provider. | Protection against lost productivity and the impact of malicious URLs as well as helping to maintain network bandwidth for business essential traffic. |
| Content filtering | Effective content filtering based on MIME type, file extension, and protocol commands. | Protection against lost productivity and the impact of extraneous or malicious content on the network to help maintain bandwidth for business essential traffic. |
Centralized Management
Juniper Networks Junos Space Security Director delivers scalable and responsive security management that improves the reach, ease, and accuracy of security policy administration. It lets administrators manage all phases of the security policy lifecycle through a single Webbased interface, accessible via standard browsers. Junos Space Security Director centralizes application identification, firewall, IPS, NAT, and VPN security management for intuitive and quick policy administration.
Junos Space Security Director runs on the Junos Space Network Management Platform for highly extensible, network-wide management functionality, including ongoing access to Juniper and third-party Junos Space ecosystem innovations.
Modules:
Switch Fabric and Control Board (SCB)
At the heart of the Dynamic Services Architecture is the switch fabric and control board (SCB). The SCB transforms the chassis from a simple module enclosure into a highly effective mesh network. The purpose of the SCB is to allow all modules in the chassis to send traffic at extremely high bandwidth.
The Route Engine (RE)
The routing engine (RE) is tightly coupled with the functionality of the SCB and can be considered the central nervous system of the architecture. The RE is the control plane of the chassis, and provides overall management and communications to and from system administrators, as well as calculating route tables for routing network traffic.
Services Processing Card (SPC)
If the RE is the central nervous system of the chassis, the Service Processing Card (SPC), is the brain.SPCs are blades that provide the capacity to perform the heavy lifting of processing network packets.The chassis must have at least one SPC to operate.
The true elegance of this design is realized when more than one SPC is installed.Rather than the chassis now having two or more "brains," as in traditional network architecture, the addition of a new SPC essentially results in a larger system that can perform many more tasks at a given time.
Input/Output Cards (IOC)
The chassis slots in the Dynamic Services Architecture are unique in that they are card-agnostic, allowing administrators to configure the architecture for their specific needs up to the limits of the chassis itself.For example, an organization that requires more processing capability, such as a military installation, may include more SPCs and fewer Input/Output cards (IOCs).An Internet service provider, on the other hand, may choose to provide a great deal of I/O for its customer traffic, while needing less raw processing power. As business requirements change, administrators may easily add IOCs and SPCs to reconfigure the architecture as needed.
Based on this agnostic slot design, the IOC can therefore scale independently - the chassis may be equipped with as many IOCs as there are available slots (with at least one slot for the SPC).The dynamic nature of the architecture then automatically maps each session to a SPC in real time as new sessions are received to be processed.
Technical Specifications:
| Model: | SRX5400 | SRX5600 | SRX5800 |
|---|---|---|---|
 |
 |
 |
|
| Maximum Layer 3 Performance and Capacity1 | |||
| Junos OS version tested | Junos OS 12.1 | Junos OS 12.1 | Junos OS 12.1 |
| Firewall performance (large packets) | 65 Gbps | 130 Gbps | 300 Gbps |
| Firewall performance (IMIX) | 30 Gbps | 65 Gbps | 130 Gbps |
| Firewall packets per second (64 bytes) | 9.8 Mpps | 20 Mpps | 50 Mpps |
| Maximum AES256+SHA-1 VPN performance | 43 Gbps | 75 Gbps | 150 Gbps |
| Maximum 3DES+SHA-1 VPN performance | 43 Gbps | 75 Gbps | 150 Gbps |
| Maximum IPS performance | 22 Gbps | 50 Gbps | 100 Gbps |
| Maximum AppFW performance | 50 Gbps | 80 Gbps | 160 Gbps |
| Maximum concurrent sessions | 28 Million | 100 million | 100 million |
| New sessions/second (sustained, tcp, 3way) | 450,000 | 450,000 | 450,000 |
| Maximum security policies | 80,000 | 80,000 | 80,000 |
| Maximum users supported | Unrestricted | Unrestricted | Unrestricted |
| Network Connectivity | SRX5400 | SRX5600 | SRX5800 |
| Maximum available slots for IOCs | 2 | 5 | 11 |
| LAN interface options | 10 x 10-Gigabit
Ethernet IOCII 2 x 40-Gigabit Ethernet IOCII 1 x 100-Gigabit Ethernet IOCII |
40 x 1-Gigabit Ethernet SFP 4 x 10-Gigabit Ethernet XFP (SR or LR) 16 x 1-Gigabit Ethernet Flex IOC 4 x 10-Gigabit Ethernet XFP Flex IOC |
40 x 1- Gigabit Ethernet SFP 4 x 10-Gigabit Ethernet XFP (SR or LR) 16 x 1-Gigabit Ethernet Flex IOC 4 x 10-Gigabit Ethernet XFP Flex IOC |
| Processing Scalability | SRX5400 | SRX5600 | SRX5800 |
| Maximum available slots for SPCs | 2 | 5 | 5 |
| SPC options | SPCII: Quad CPU with 128 GB memory | SPC: Dual CPU with
8 GB memory SPCII: Quad CPU with 128 GB memory |
SPC: Dual CPU with
8 GB memory SPCII: Quad CPU with 128 GB memory |
| Dimensions | SRX5400 | SRX5600 | SRX5800 |
| Dimensions (W x H x D) | 17.45 x 8.7 x 24.5 in (44.3 x 22.1 x 62.2 cm) |
17.5 x 14 x 23.8 in (44.5 x 35.6 x 60.5 cm) |
17.5 x 27.8 x 23.5 in (44.5 x 70.5 x 59.7 cm) |
| Weight (device and power supply) | Fully configured 128 lb (58.1 kg) |
Fully Configured: 180 lb (81.7 kg) |
Fully Configured: 334 lb (151.6 kg) |
| Power | SRX5400 | SRX5600 | SRX5800 |
| Power supply (AC) | 100 to 240 VAC | 100 to 240 VAC | 200 to 240 VAC |
| Power supply (DC) | -40 to -60 VDC | -40 to -60 VDC | -40 to -60 VDC |
| Maximum power | 4,100 watts (AC high capacity) | 3,180 watts (AC standard
capacity) 4,100 watts (AC high capacity) |
5,100 watts (AC standard
capacity) 8,200 watts (AC high capacity) |
| Environment | SRX5400 | SRX5600 | SRX5800 |
| Operating temperature - long term | 41° to 104° F (5° to 40° C) | 41° to 104° F (5° to 40° C) | 41° to 104° F (5° to 40° C) |
| Operating temperature - short term2 | 23° to 131° F (-5° to 55° C) | 23° to 131° F (-5° to 55° C) | 23° to 131° F (-5° to 55° C) |
| Humidity - long term | 5% to 85% noncondensing | 5% to 85% noncondensing | 5% to 85% noncondensing |
| Humidity - short term2 | 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air | 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air | 5% to 93% noncondensing but not to exceed 0.026kg water/kg of dry air |
| Certifications | SRX5400 | SRX5600 | SRX5800 |
| Safety certifications | Yes | Yes | Yes |
| Electromagnetic compatibility (EMC) certifications | Yes | Yes | Yes |
| Designed for NEBS Level 3 | Yes | Yes | Yes |
| NIST FIPS-140-2 Level 2 | No | Yes (with Junos OS 10.4R4) | Yes (with Junos OS 10.4R4) |
| ISO Common Criteria NDPP+TFFW EP | No | Yes (with Junos OS 12.1x44) | Yes (with Junos OS 12.1x44) |
| ICSA Network Firewall | No | Yes | Yes |
| ICSA IPsec | No | Yes | Yes |
| USGv6 | No | Yes (with Junos OS 11.4R1) | Yes (with Junos OS 11.4R1) |
| 3GPP TS 20.060 Compliance* | SRX5400 | SRX5600 | SRX5800 |
| R6: 3GPP TS 29.060 version 6.21.0 | Yes | Yes | Yes |
| R7: 3GPP TS 29.060 version 7.3.0 | Yes | Yes | Yes |
| R8: 3GPP TS 29.060 version 8.3.0 | Yes | Yes | Yes |
1. Performance, capacity and features listed are based on systems runninng Junos OS 10.2 and are measured under ideal testing conditions. Actual results may vary based on Junos OS releases and by deployments.
2. Short term is not greater than 96 consecutive hours, and not greater than 15 days in 1 year
* SRX5000 line gateways operating with Junos software release 10.0 and later are compliant with the R6, R7, and R8 releases of 3GPP TS 20.060 with the following exceptions (not supported on the SRX5000 line):
- Section 7.5A Multimedia Broadcast and Multicast Services (MBMS) messages
- Section 7,5B Mobile Station (MS) info change messages
- Section 7.3.12 Initiate secondary PDP context from GGSN
Additional Features and Comparison:
| Model: | SRX5400 | SRX5600 | SRX5800 |
|---|---|---|---|
|
|
|
|
| Firewall | |||
| Network attack detection | Yes | Yes | Yes |
| DoS and DDoS protection | Yes | Yes | Yes |
| TCP reassembly for fragmented packet protection | Yes | Yes | Yes |
| Brute-force attack mitigation | Yes | Yes | Yes |
| SYN cookie protection | Yes | Yes | Yes |
| Zone-based IP spoofing | Yes | Yes | Yes |
| Malformed packet protection | Yes | Yes | Yes |
| IPsec VPN | SRX5400 | SRX5600 | SRX5800 |
| Site-to-site tunnels | 15,000 | 15,000 | 15,000 |
| Tunnel interfaces | 15,000 | 15,000 | 15,000 |
| DES (56-bit), 3DES (168-bit), and AES encryption | Yes | Yes | Yes |
| MD5 and SHA-1 authentication | Yes | Yes | Yes |
| Manual key, IKE, PKI (X.509) | Yes | Yes | Yes |
| Perfect forward secrecy (DH groups) | 1,2,5 | 1,2,5 | 1,2,5 |
| Prevent replay attack | Yes | Yes | Yes |
| Remote access VPN | Yes | Yes | Yes |
| Redundant VPN gateways | Yes | Yes | Yes |
| Intrusion Prevention System | SRX5400 | SRX5600 | SRX5800 |
| Modes of operation: In-line and in-line tap | Yes | Yes | Yes |
| Active/active traffic monitoring | Yes | Yes | Yes |
| Stateful protocol signatures | Yes | Yes | Yes |
| Attack detection mechanisms | Stateful signatures, protocol anomaly detection (zero-day coverage), application identification | Stateful signatures, protocol anomaly detection (zero-day coverage), application identification | Stateful signatures, protocol anomaly detection (zero-day coverage), application identification |
| Attack response mechanisms | Drop connection, close connection, session packet log, session summary, email |
Drop connection, close connection, session packet log, session summary, email |
Drop connection, close connection, session packet log, session summary, email |
| Attack notification mechanisms | Structured Syslog | Structured Syslog | Structured Syslog |
| Worm protection | Yes | Yes | Yes |
| Simplified installation through recommended policies | Yes | Yes | Yes |
| Trojan protection | Yes | Yes | Yes |
| Spyware/adware/keylogger protection | Yes | Yes | Yes |
| Other malware protection | Yes | Yes | Yes |
| Application denial of service protection | Yes | Yes | Yes |
| Protection against attack proliferation from infected systems | Yes | Yes | Yes |
| Reconnaissance protection | Yes | Yes | Yes |
| Request and response-side attack protection | Yes | Yes | Yes |
| Compound attacks-combines stateful signatures and protocol anomalies | Yes | Yes | Yes |
| Create custom attack signatures | Yes | Yes | Yes |
| Access contexts for customization | 500+ | 500+ | 500+ |
| Attack editing (port range, other) | Yes | Yes | Yes |
| Stream signatures | Yes | Yes | Yes |
| Protocol thresholds | Yes | Yes | Yes |
| Stateful protocol signatures | Yes | Yes | Yes |
| Approximate number of attacks covered | 8,000+ | 8,000+ | 8,000+ |
| Detailed threat descriptions and remediation/patch info | Yes | Yes | Yes |
| Create and enforce appropriate application-usage policies | Yes | Yes | Yes |
| Attacker and target audit trail and reporting | Yes | Yes | Yes |
| Frequency of updates | Daily and emergency | Daily and emergency | Daily and emergency |
| GPRS Security | SRX5400 | SRX5600 | SRX5800 |
| GPRS stateful firewall | Yes | Yes | Yes |
| GTP tunnels | 1,000,000 | 1,000,000 | 1,000,000 |
| Destination Network Address Translation | SRX5400 | SRX5600 | SRX5800 |
| Destination NAT with PAT | Yes | Yes | Yes |
| Destination NAT within same subnet as ingress interface IP | Yes | Yes | Yes |
| Destination addresses and port numbers to one single address and a specific port number (M:1P) | Yes | Yes | Yes |
| Destination addresses to one single address (M:1) | Yes | Yes | Yes |
| Destination addresses to another range of addresses (M:M) | Yes | Yes | Yes |
| Source Network Address Translation | SRX5600 | SRX5800 | |
| Static Source NAT - IP-shifting DIP | Yes | Yes | Yes |
| Source NAT with PAT - port-translated | Yes | Yes | Yes |
| Source NAT without PAT - fix-port | Yes | Yes | Yes |
| Source NAT - IP address persistency | Yes | Yes | Yes |
| Source pool grouping | Yes | Yes | Yes |
| Source pool utilization alarm | Yes | Yes | Yes |
| Source IP outside of the interface subnet | Yes | Yes | Yes |
| Interface source NAT - interface DIP | Yes | Yes | Yes |
| Oversubscribed NAT pool with fallback to PAT when the address pool is exhausted | Yes | Yes | Yes |
| Symmetric NAT | Yes | Yes | Yes |
| Allocate multiple ranges in NAT pool | Yes | Yes | Yes |
| Proxy ARP for physical port | Yes | Yes | Yes |
| Source NAT with loopback grouping - DIP loopback grouping | Yes | Yes | Yes |
| User Authentication and Access Control | SRX5400 | SRX5600 | SRX5800 |
| Built-in (internal) database | Yes | Yes | Yes |
| RADIUS accounting | Yes | Yes | Yes |
| Web-based authentication | Yes | Yes | Yes |
| Public Key Infrastructure (PKI) Support | SRX5400 | SRX5600 | SRX5800 |
| PKI certificate requests (PKCS 7 and PKCS 10) | Yes | Yes | Yes |
| Automated certificate enrollment (SCEP) | Yes | Yes | Yes |
| Certificate authorities supported | Yes | Yes | Yes |
| Self-signed certificates | Yes | Yes | Yes |
| Virtualization | SRX5400 | SRX5600 | SRX5800 |
| Maximum number of security zones | 2,000 | 2,000 | 2,000 |
| Maximum number of virtual routers | 2,000 | 2,000 | 2,000 |
| Maximum number of VLANs | 4,096 | 4,096 | 4,096 |
| Logical Systems | 32 | 32 | 32 |
| Routing | SRX5400 | SRX5600 | SRX5800 |
| BGP instances | 1,000 | 1,000 | 1,000 |
| BGP peers | 2,000 | 2,000 | 2,000 |
| BGP routes | 1,000,0002 | 1,000,0002 | 1,000,0002 |
| OSPF instances | 400 | 400 | 400 |
| OSPF routes | 1,000,0002 | 1,000,0002 | 1,000,0002 |
| RIP v1/v2 instances | 50 | 50 | 50 |
| RIP v2 table size | 30,000 | 30,000 | 30,000 |
| Dynamic routing | Yes | Yes | Yes |
| Static routes | Yes | Yes | Yes |
| Source-based routing | Yes | Yes | Yes |
| Policy-based routing | Yes | Yes | Yes |
| Equal-cost multipath (ECMP) | Yes | Yes | Yes |
| Reverse path forwarding (RPF) | Yes | Yes | Yes |
| Multicast | Yes | Yes | Yes |
| IPv6 | SRX5400 | SRX5600 | SRX5800 |
| Firewall/stateless filters | Yes | Yes | Yes |
| Dual stack IPv4/IPv6 firewall | Yes | Yes | Yes |
| RIPng | Yes | Yes | Yes |
| BFD, BGP | Yes | Yes | Yes |
| ICMPv6 | Yes | Yes | Yes |
| OSPFv3 | Yes | Yes | Yes |
| Class of service | Yes | Yes | Yes |
| Mode of Operation | SRX5400 | SRX5600 | SRX5800 |
| Layer 2 (transparent) mode | Yes | Yes | Yes |
| Layer 3 (route and/or NAT) mode | Yes | Yes | Yes |
| IP Address Assignment | SRX5400 | SRX5600 | SRX5800 |
| Static | Yes | Yes | Yes |
| Dynamic Host Configuration Protocol (DHCP) | Yes | Yes | Yes |
| Internal DHCP server | Yes | Yes | Yes |
| DHCP relay | Yes | Yes | Yes |
| Traffic Management QoS | SRX5400 | SRX5600 | SRX5800 |
| Maximum bandwidth | Yes | Yes | Yes |
| RFC2474 IP DiffServ in IPv4 | Yes | Yes | Yes |
| Firewall filters for COS | Yes | Yes | Yes |
| Classification | Yes | Yes | Yes |
| Scheduling | Yes | Yes | Yes |
| Shaping | Yes | Yes | Yes |
| Intelligent Drop Mechanisms (WRED) | Yes | Yes | Yes |
| Three-level scheduling | Yes | Yes | Yes |
| Weighted round-robin for each level of scheduling | Yes | Yes | Yes |
| Priority of routing protocols | Yes | Yes | Yes |
| Traffic management/policing in hardware | Yes | Yes | Yes |
| High Availability | SRX5400 | SRX5600 | SRX5800 |
| Active/passive, active/active | Yes | Yes | Yes |
| Low impact chassis cluster upgrades | Yes | Yes | Yes |
| Configuration synchronization | Yes | Yes | Yes |
| Session synchronization for firewall and IPsec VPN | Yes | Yes | Yes |
| Session failover for routing change | Yes | Yes | Yes |
| Device failure detection | Yes | Yes | Yes |
| Link and upstream failure detection | Yes | Yes | Yes |
| Dual control links | Yes | Yes | Yes |
| Interface link aggregation/LACP | Yes | Yes | Yes |
| Redundant data and control links* | Yes | Yes | Yes |
| Management | SRX5400 | SRX5600 | SRX5800 |
| WebUI (HTTP and HTTPS) | Yes | Yes | Yes |
| Command-line interface (console) | Yes | Yes | Yes |
| Junos Space Security Director | Yes | Yes | Yes |
| Administration | SRX5400 | SRX5600 | SRX5800 |
| Local administrator database support | Yes | Yes | Yes |
| External administrator database support | Yes | Yes | Yes |
| Restricted administrative networks | Yes | Yes | Yes |
| Root admin, admin, and read-only user levels | Yes | Yes | Yes |
| Software upgrades | Yes | Yes | Yes |
| Configuration rollback | Yes | Yes | Yes |
| Logging/Monitoring | SRX5400 | SRX5600 | SRX5800 |
| Structured System Log | Yes | Yes | Yes |
| SNMP (v2) | Yes | Yes | Yes |
| Traceroute | Yes | Yes | Yes |
1. Performance, capacity and features listed are based on systems runninng Junos OS 10.2 and are measured under ideal testing conditions. Actual results may vary based on Junos OS releases and by deployments.
2. Maximum number of BGP and OSPF routes recommended is 100,000.
*To enable dual control links on the SRX5000 line, two SRX5K-RE-13-20 modules must be installed on each cluster member.
Documentation:
Download the Juniper Networks SRX5400, SRX5600 and SRX5800 Services Gateways Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
(includes the bundled SPC and MPC)
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-LH if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-LX if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-SX if necessary.
Our Price: Request a Quote
Note: Substitute with JX-SFP-1GE-T if necessary.
Our Price: Request a Quote
