SRX4100 Overview:
The SRX4100 and SRX4200 Services Gateways offer outstanding protection, performance, scalability, availability, and integrated security services. Designed for high-performance security services architectures and seamless integration of networking and security in a single platform, the SRX4100 and SRX4200 are best suited for enterprise data centers, campuses, and regional headquarters, with a focus on application visibility and control, intrusion prevention, advanced threat protection, autnentication, confidentiality of information, and integrated cloud-based security. Both devices are powered by Junos OS, the industry-leading operating system that keeps the world’s largest mission-critical enterprise networks secure.
Product Description
The Juniper Networks SRX4100 and SRX4200 Services Gateways are high-performance, next-generation firewalls and hardware-accelerated security services gateways that protect mission-critical data center networks, enterprise campuses, and regional headquarters. The SRX4100 and SRX4200 not only provide best-in-class security and advanced threat mitigation capabilities, they also integrate carrier-class routing in the same platform.
The SRX4100 and SRX4200 deliver a next-generation security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services in an enterprise data center or campus, connecting to the cloud, complying with industry standards, or achieving operational efficiency, the SRX4100 and SRX4200 help organizations realize their business objectives while providing scalability, ease of management, secure connectivity, and advanced threat mitigation capabilities. The SRX4100 and SRX4200 protect key corporate assets as next-generation firewalls, act as enforcement points for cloud-based security solutions, and provide application visibility and control to improve the user and application experience.
Architecture and Key Components:
The SRX4100 and SRX4200 hardware and software architecture provides cost-effective security performance in a small 1 U form factor. Purpose-built to protect up to 40 Gbps Internet Mix (IMIX) firewall throughput network environments, the SRX4100 and SRX4200 incorporate multiple security services and networking functions on top of the industryleading Juniper Networks Junos operating system. The SRX4100 supports up to 20 Gbps (IMIX) of firewall performance, 7 Gbps of next-generation firewall (application security, intrusion prevention, enhanced URL filtering, and logging), and 5 Gbps of IPsec VPN in data center, enterprise campus, and regional headquarter deployments with IMIX traffic patterns. The SRX4200 supports up to 40 Gbps of firewall performance, 15 Gbps of nextgeneration firewall, and up to 9.6 Gbps of IPsec VPN in data center, enterprise campus, and regional headquarter deployments with IMIX traffic patterns.
| Model: | SRX4100 | SRX4200 |
|---|---|---|
| Statistics1 | ||
| Firewall throughput | 40 Gbps | 80 Gbps |
| Firewall throughput-IMIX | 20 Gbps | 40 Gbps |
| Firewall throughput with application security | 18 Gbps | 35 Gbps |
| IPsec VPN throughput-IMIX | 5 Gbps | 9.6 Gbps |
| Intrusion prevention | 10 Gbps | 20 Gbps |
| NGFW2 throughput | 7 Gbps | 15 Gbps |
| Connections per second | 175,000 | 350,000 |
| Maximum session | 5 million | 10 million |
The SRX4100 and SRX4200 recognize more than 3,500 applications and nested applications in plain-text or SSLencrypted transactions. The firewalls also integrate with Microsoft Active Directory and combine user information with application data to provide network-wide application and user visibility and control.
1 Performance, capacity and features listed are based on systems running Junos OS 15.1x49 and are measured under ideal testing conditions. Actual results may vary based on Junos OS releases and by deployments.
2 Next-generation firewall (NGFW) is a combination of advanced features such as application security, IPS, and URLF in addition to the foundational services such as logging and stateful firewall.
Features & Benefits:
| Business Requirement | Feature/Solution | SRX4100/SRX4200 Advantages |
|---|---|---|
| High performance | Up to 80 Gbps of firewall throughput (up to 40 Gbps of IMIX firewall throughput) |
|
| High-quality end-user experience | Application visibility and control |
|
| Advanced threat protection | Intrusion prevention system (IPS), antivirus, antispam, Spotlight Secure, Sky Advanced Threat Prevention |
|
| Professional-grade networking services | Routing, secure wire |
|
| Highly secure | IPsec VPN |
|
| Highly reliable | Chassis cluster, redundant power supplies |
|
| Easy to manage and scale | On-box GUI, Security Director |
|
| Low TCO | Junos OS |
|
Technical Specifications:
| Model: | SRX4100 | SRX4200 |
|---|---|---|
| Connectivity | ||
| Total onboard ports | 8x1GbE/10GbE | 8x1GbE/10GbE |
| Onboard small form-factor pluggable plus (SFP+) transceiver ports | 8x1GbE/10GbE | 8x1GbE/10GbE |
| Out-of-Band (OOB) management ports | 1x1GbE | 1x1GbE |
| Dedicated high availability (HA) ports | 2x1GbE/10GbE (SFP/SFP+) | 2x1GbE/10GbE (SFP/SFP+) |
| Console (RJ-45) | 1 | 1 |
| USB 2.0 ports (type A) | 2 | 2 |
| Memory and Storage | ||
| System memory (RAM) | 64 GB | 64 GB |
| Secondary storage (SSD) | 240 GB with 1+1 RAID | 240 GB with 1+1 RAID |
| Dimensions and Power | SRX4100 | SRX4200 |
| Form factor | 1 U | 1 U |
| Size (WxHxD) | 17.48 x 1.7.x.25 in (44.39 x 4.31 x 63.5 cm) |
17.48 x 1.7.x.25 in (44.39 x 4.31 x 63.5 cm) |
| Weight (device and PSU) | Chassis with two AC power supplies: 29 lb (13.15 kg) Chassis with two DC power supplies: 28.9 lb (13.06 kg) Chassis with package for shipping: 47.5 lb (21.54 kg) |
Chassis with two AC power supplies: 29 lb (13.15 kg) Chassis with two DC power supplies: 28.9 lb (13.06 kg) Chassis with package for shipping: 47.5 lb (21.54 kg) |
| Redundant PSU | 1+1 | 1+1 |
| Power supply | 2x 650 W redundant AC-DC/DC-DC PSU | 2x 650 W redundant AC-DC/DC-DC PSU |
| Average power consumption | 200 W | 200 W |
| Average heat dissipation | 685 BTU / hour | 685 BTU / hour |
| Maximum current consumption | 4A (for 110 V AC power) 2A (for 220 V AC power) 9A (for -48 V DC power) |
4A (for 110 V AC power) 2A (for 220 V AC power) 9A (for -48 V DC power) |
| Maximum inrush current | 50 A by 1 AC cycle | 50 A by 1 AC cycle |
| Acoustic noise level | 70 dBA | 70 dBA |
| Airflow/cooling | Front to back | Front to back |
| Environmental, Compliance, and Safety Certification | SRX4100 | SRX4200 |
| Operating temperature | 32° to 104° F (0° to 40° C) | |
| Operating humidity | 5% to 90% noncondensing | |
| Meantime between failures (MTBF) | 12 years (105,120 hours) | 12 years (105,120 hours) |
| FCC classification | Class A | Class A |
| RoHS compliance | RoHS 2 | RoHS 2 |
| Performance and Scale | SRX4100 | SRX4200 |
| Routing/firewall (64 B packet size) throughput Gbps1 | 5 | 10 |
| Routing/firewall (IMIX packet size) throughput Gbps1 | 20 | 40 |
| Routing/firewall (1,518 B packet size) throughput Gbps1 | 40 | 80 |
| IPsec VPN (IMIX packet size) Gbps1 | 5 | 9.6 |
| IPsec VPN (1,400 B packet size) Gbps1 | 10 | 20 |
| Application visibility and control in Gbps2 | 18 | 35 |
| Recommended IPS in Gbps2 | 10 | 20 |
| Next-generation firewall in Gbps2 | 7 | 15 |
| Connections per second (CPS) | 175,000 | 300,000 |
| Maximum security policies | 60,000 | 60,000 |
| Maximum concurrent sessions (IPv4 or IPv6) | 5 million | 10 million |
| Route table size (RIB/FIB) (IPv4 or IPv6) | 2 million / 2 million | 2 million / 2 million |
Additional Specification Features:
Firewall Services
- Stateful and stateless firewall
- Zone-based firewall
- Screens and distributed denial of service (DDoS) protection
- Protection from protocol and traffic anomaly
- Unified Access Control (UAC)
Network Address Translation (NAT)
- Source NAT with Port Address Translation (PAT)
- Bidirectional 1:1 static NAT
- Destination NAT with PAT
- Persistent NAT
- IPv6 address translation
VPN Features
- Tunnels: Generic routing encapsulation (GRE), IP-IP, IPsec
- Site-site IPsec VPN, auto VPN, group VPN
- IPsec crypto algorithms: Data Encryption Standard (DES), triple DES (3DES), Advanced Encryption Standard (AES-256)
- IPsec authentication algorithms: MD5, SHA-1, SHA-128, SHA-256
- Pre-shared key and public key infrastructure (PKI) (X.509)
- Perfect forward secrecy, anti-reply
- IPv4 and IPv6 IPsec VPN
- Multi-proxy ID for site-site VPN
- Internet Key Exchange (IKEv1, IKEv2), NAT-T
- Virtual router and quality-of-service (QoS) aware
- Standard-based dead peer detection (DPD) support
High Availability Features
- Virtual Router Redundancy Protocol (VRRP) - IPv4 and IPv6
- Stateful high availability
- Dual box clustering
- Active/passive
- Active/active
- Configuration synchronization
- Firewall session synchronization
- Device/link detection
- In-Band Cluster Upgrade (ICU)
- IP monitoring with route and interface failover
Application Security Services
- Application visibility and control
- Application-based firewall
- Application QoS
- Advanced/application policy-based routing feature (APBR)
- User-based firewall
- Intrusion prevention system
- Antivirus
- Antispam
- Category/reputation-based URL filtering
- SSL proxy/inspection
Threat Defense and Intelligence Services
- Spotlight Secure threat intelligence
- Protection from botnets (command and control)
- Adaptive enforcement based on GeoIP
- Sky Advanced Threat Prevention to detect and block zeroday attacks
Routing Protocols
- IPv4, IPv6, static routes, RIP v1/v2
- OSPF/OSPF v3
- BGP with route reflector
- IS-IS
- Multicast: Internet Group Management Protocol (IGMP) v1/v2; Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM); Session Description Protocol (SDP); Distance Vector Multicast Routing Protocol (DVMRP); Multicast Source Discovery Protocol (MSDP); reverse path forwarding (RPF)
- Encapsulation: VLAN, Point-to-Point Protocol over Ethernet (PPPoE)
- Virtual routers
- Policy-based routing, source-based routing
- Equal-cost multipath (ECMP)
- Support for 802.1p, DiffServ code point (DSCP), EXP
- Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters
- Marking, policing, and shaping
- Classification and scheduling
- Weighted random early detection (WRED)
- Guaranteed and maximum bandwidth
- Ingress traffic policing
- Virtual channels
Network Services
- Dynamic Host Configuration Protocol (DHCP) client/server/ relay
- Domain Name System (DNS) proxy, dynamic DNS (DDNS)
- Juniper real-time performance monitoring (RPM) and IP monitoring
- Juniper flow monitoring (J-Flow)
Advanced Routing Services
- Packet Mode
- MPLS (RSVP, LDP)
- Circuit cross-connect (CCC), translational cross-connect (TCC)
- L2/L2 MPLS VPN, pseudowires
- Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN)
- MPLS traffic engineering and MPLS fast reroute
Management, Automation, Logging, and Reporting
- SSH, Telnet, SNMP
- Smart image download
- Juniper CLI and Web UI
- Juniper Networks Junos Space Security Director
- Python
- Junos events, commit and OP scripts
- Application and bandwidth usage reporting
- Debug and troubleshooting tools
1 Throughput numbers based on UDP packets and RFC2544 test methodology
2 Throughput numbers based on HTTP traffic with 44 KB transaction size and up to the numbers captured here
Views:

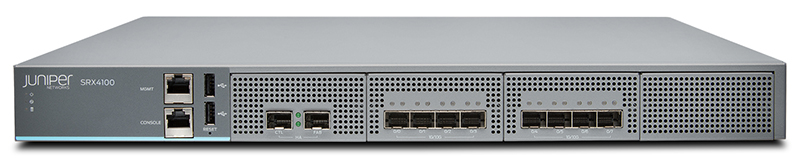

Top Front View

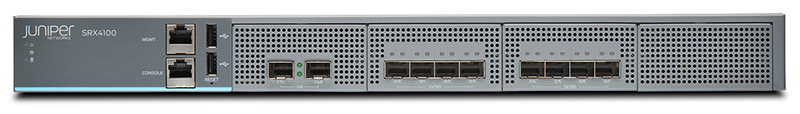

Front View

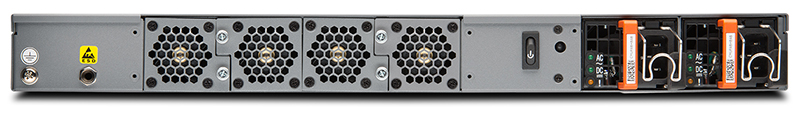

Rear View

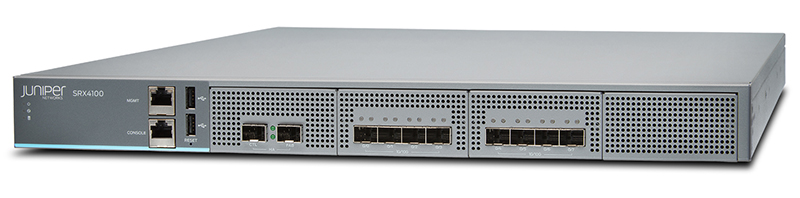

Left Angle View

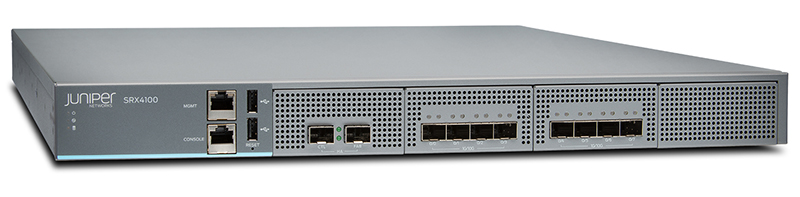

Right Angle View
Documentation:
Download the Juniper Networks SRX4100 and SRX4200 Services Gateways Datasheet (PDF).
