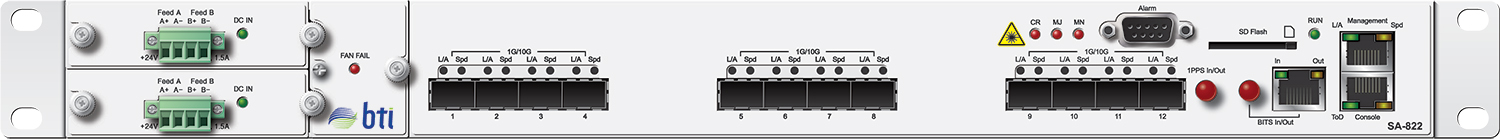

Juniper Networks BTI822
Connectivity for Ethernet access and mobile backhaul applications
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Product Overview:
The BTI800 line of Ethernet access devices delivers highperformance connectivity and aggregation for Carrier Ethernet business services and 4G LTE and LTE-Advanced mobile backhaul applications. The standardsbased, carrier-grade product family, which includes compact service access platforms and high-capacity service aggregation platforms, also supports unified management.
Product Description
The Juniper Networks® BTI800 line of Ethernet access devices supports industrystandard Metro Ethernet Forum (MEF) Carrier Ethernet 2.0 service types for high-capacity Ethernet business services and mobile backhaul (3G/4G/4G LTE and 4G LTE-Advanced) applications.
Tightly integrated with the Juniper Networks BTI7000 and BTI7800 product lines, the BTI800 Ethernet Access Devices represent the Ethernet metro service access and aggregation components of a complete end-to-end packet optical networking solution, delivering a cost-effective and seamless path to high-performance Ethernet services.
The BTI800 platforms leverage dedicated hardware for 1588v2 clock recovery, providing 1 pulse per second and time-of-day GPS minimum recommended data sentence (GPRMC) outputs for phase and clock synchronization in mobile backhaul applications.
Comprehensive Provisioning, Monitoring, and Management
The BTI800 line supports in-band and out-of-band SNMP management as well as a command-line interface for configuration, monitoring, and control functions. The BTI800 platforms feature hardware accelerated, industry-standard Y.1731 performance monitoring for measuring key service performance metrics, including latency, jitter, and frame loss. Built-in RFC2544 test methodology and Y.1564 service activation testing accelerate service turn-up, while Juniper Networks proNX Software and associated applications-including the proNX Service Manager, proNX Dashboard, and proNX SLA Portal-provide easy-to-use GUIs that simplify operations, accelerate service velocity, and optimize quality of experience with endto-end service provisioning and service-level agreement (SLA) monitoring.
BTI800 Models
The BTI800 line includes three models: the BTI805, BTI821, and BTI822.
BTI805 Ethernet Access Device
The BTI805 delivers high-performance connectivity for Ethernet business services and mobile backhaul applications. The platform provides 40 Gbps nonblocking switching capacity in an ultra-compact design, enabling service providers to deliver price competitive, high-performance 10GbE access services while reducing operational costs and management complexity. This low power and temperature resilient platform is ideal for wireless tower sites and business customer premises.
BTI821 and BTI822 Ethernet Aggregation Devices
The BTI821 and BTI822 platforms provide high-capacity Ethernet services aggregation and transport for metro networks. These cost-effective multiservice platforms also deliver high performance and reliability for Carrier Ethernet business services and mobile backhaul applications.
BTI800 Series Product Options
| Model | Size (Rack Unit) | Switching Fabric | Interfaces |
|---|---|---|---|
| BTI805 | 1 U | 40 Gbps | 4 ports x 1GbE/10GbE small form-factor pluggable plus transceiver (SFP+) |
| BTI821 | 1 U | 64 Gbps | 24 ports x 1GbE SFP 4 ports x 1GbE/10GbE SFP+ |
| BTI822 | 1 U | 120 Gbps | 12 ports x 1GbE/10GbE SFP+ |
Features and Benefits:
- Compact, low power designs deliver high performance and reduce operational costs
- G.8031 and G.8032v2 ring protection to ensure high reliability with sub-50 ms protection switching performance
- MEF CE 2.0 certified E Line and E LAN; MEF CE 2.0-compliant E Access services
- Comprehensive fault and performance management with Y.1731 Operation, Administration, and Maintenance (OAM), loopback, link trace, delay, jitter and loss measurement
- Built-in RFC2544 and Y.1564 test capabilities
- Synchronization source derived from SyncE Ethernet interfaces or 1588v2 clock
- Fully integrated with Juniper Networks proNX Software and associated applications
Specifications
| BTI805 | BTI821 | BTI822 | |
|---|---|---|---|
| Interface options | 4 ports x 1GbE/10GbE SPF+ | 4x 10GbE SPF+ ports/24x 1GbE SPF ports | 12x GbE/10GbE SPF+ ports |
| Dimensions (HxWxD) | 1.73 x 7.32 x 7.32 in (4.4 x 18.6 x 18.7 cm) | 1.73 x 17.32 x 9.44 in (4.4 x 44 x 24 cm) | 1.73 x 17.32 x 9.44 in (4.4 x 44 x 24 cm) |
| Weight | 3.08 lb (1.4 Kg) | 5.3 lbs (2.4 Kg) | 5.3 lbs (2.4 Kg) |
| Power consumption |
|
|
|
| Operating temperature | -40° to +65°C | -40° to +65°C | -40° to +65°C |
| Humidity | Up to 85% noncondensing | Up to 85% noncondensing | Up to 85% noncondensing |
| Environmental and safety certifications |
|
|
|
Documentation:
Download the Juniper Networks BTI800 Series Ethernet Access Platforms Data Sheet (PDF).
